Understanding 12V RGB vs. 5V ARGB: Voltage, Pin Layouts, and Compatibility

I’m here to help you navigate the often confusing world of PC lighting. When I built my first custom gaming rig, I learned the hard way that choosing the wrong parts can cause hardware problems.

In this short guide, I explain how the two main lighting standards differ in voltage and pin layout. My goal is to give clear, practical advice so you can pick parts that match your board and controller.

I’ll break down technical details like power needs, connector pins, and common compatibility pitfalls in plain language. By the end, you should feel confident planning a clean, reliable lighting setup for your build.

Key Takeaways

• I share practical tips from my first build to help you avoid common mistakes.
• You will learn the key differences in voltage and pin layouts.
• Choosing the right controller prevents damage and improves compatibility.
• Legacy and modern standards serve different needs; pick based on your goals.
• The guide will help you match components for a professional-looking setup.

Understanding the Basics of PC Lighting

I want to give you a simple primer on how PC lighting works and why it matters for your build.

RGB stands for red, green, and blue. These three lights mix to create the wide range of colors you see in a case.

Modern parts like fans, RAM, and the motherboard often include integrated lighting. That makes it easy to sync effects across components for a cohesive look.

Every LED on a standard rgb device is typically grouped in a single unit, so the whole strip or fan will show the same color at once.

I find lighting one of the most rewarding ways to personalize a gaming machine. A single color strip behind my desk sets the mood fast.

• I often start beginners on simple strips because they are easy to install and control.
• Most motherboards include headers to sync fans and other devices in software.
• You can turn off the lights quickly if you want a stealthy build.

Technical Breakdown of 12V RGB vs 5V ARGB

Let’s unpack how the two main connector types carry power and signals so you can match parts safely.

The Four Pin Standard

The older four-pin connector uses a dedicated 12v VCC pin followed by separate pins for green, red, and blue.

This design ties all LEDs on a strip or fan to the same color at once. That limits the system to uniform color and simple effects.

It relies on 8-bit intensity per channel, which gives 256 steps per color. Cubing those steps yields about 16.8 million colors, but still only one color across the whole device.

The Three Pin Digital System

The three-pin header uses a data line and a small controller at each LED. One physical pin is missing to prevent wrong orientation.

Because each LED is addressable, devices can show complex animations like moving rainbows and per-LED transitions.

• Practical tip: I always check the motherboard manual to confirm the header type before connecting strips or fans.
• Adapters can help with proprietary connectors on some motherboards, but mixing voltages will damage a device.

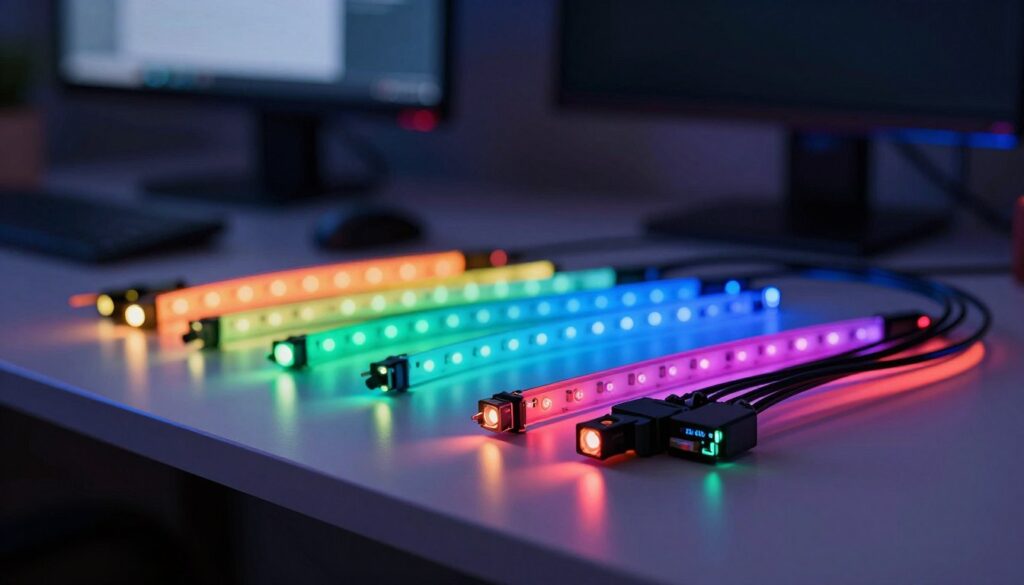

Exploring the Capabilities of Addressable Lighting

Individual LED control turns ordinary lighting into animated, synchronized art.

I love using addressable strips because each LED can be told what to do. That makes effects like chasing rainbows, ripples, and moving gradients simple to create. It also lets lights react to music for a living-room concert feel.

Advanced Effects and Synchronization

Using universal programs such as SignalRGB or OpenRGB helps sync devices from different makers. This solves the mixing problem that proprietary suites sometimes cause.

A dedicated controller gives finer control when motherboard headers fall short. Controllers can handle larger runs and more complex patterns across many leds and rgb devices.

• I sync my keyboard and mouse so effects flow across peripherals.
• Music-reactive modes bring a dynamic, party-ready setup.
• Sunrise and ripple animations need addressable control at each diode.

Feature	What it does	Needed hardware	Best use
Per-LED color	Independent color per diode	Addressable strip or fan	Complex animations
Software sync	Unified effects across devices	SignalRGB/OpenRGB or vendor app	Cross-brand setups
Controller hub	Manages many leds and patterns	Dedicated controller or hub	Large builds or advanced effects

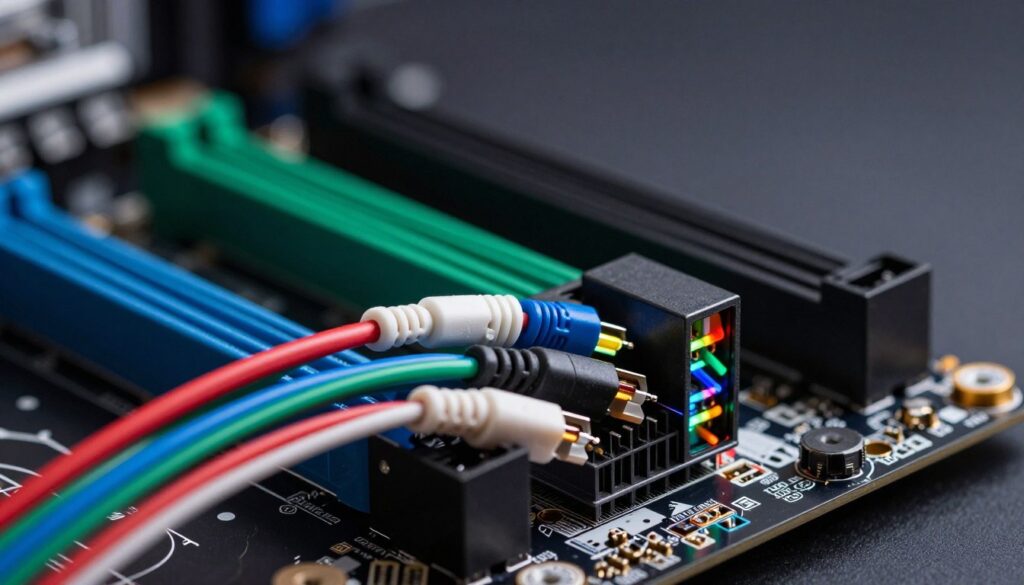

Managing Compatibility and Hardware Connections

Before you plug anything in, it’s smart to map out how each connector and header will share power in your build. I always start by locating the labeled pins on the motherboard and reading the manual.

Avoiding Voltage Damage

Never plug a 5V addressable device into a higher-voltage header. Doing so will likely destroy the leds and ruin the strip or fan instantly.

Tip: I double-check markings on both the connector and the board before making a connection.

Using Hubs and Controllers

When many devices need power, a quality hub or controller keeps a single header from being overloaded.

I recommend a powered hub or a multi-port unit like the Razer Chroma ARGB Controller, which gives six headers for multiple devices.

For 12V strips you can use a 12V hub to sync static color across runs safely.

Software Limitations

Vendor apps can block some effects across mixed-brand gear. I often use universal tools to unify control when software creates limits.

If you daisy-chain too many addressable fans you can hit the header’s power cap, so a powered controller or hub is the safer route.

• I always verify connector orientation and pin counts before connecting.
• Use powered hubs to protect headers and keep color consistent.
• Prefer controllers when running many leds or complex animations.

Final Thoughts on Choosing Your Lighting Ecosystem

Deciding on a lighting ecosystem comes down to whether you want simple, budget-friendly color or advanced, animated control.

I favor matching parts to your motherboard and planned build. Check each header and pin before you buy to prevent damage.

If you prefer steady tones and fewer hassles, the 12v rgb strip route stays affordable and reliable.

For lively effects and per-LED control, invest in the argb system and compatible devices. Use a powered hub or universal controller when many fans or strips need power.

Pick one ecosystem or a trusted controller to avoid brand mix-ups. Do that, and your lighting will match your style without stress.

FAQ

What are the main differences between 12V LED strips and 5V addressable lighting?

I explain this by focusing on power and control. One type uses higher voltage and lights groups of diodes at once, so colors change in blocks. The other uses lower voltage and lets each LED be controlled individually, creating more detailed effects. That means different headers, connectors, and controllers are required for each type.

How do the pin layouts differ between the four-pin standard and the three-pin digital system?

I look at pin purpose to tell them apart. The four-pin connector has ground, red, green, and blue lines. The three-pin digital connector has ground, data, and power. The signals and wiring are not interchangeable, so matching the plug to the right header matters to avoid damage.

Can I plug a strip meant for one connector type into the other header on my motherboard?

I advise against mixing them. The voltage and signaling differ. Plugging a strip into the wrong header can short the strip or the board. Use a proper adapter or a dedicated controller designed for cross-compatibility instead of forcing a connection.

What should I know about avoiding voltage damage when connecting lighting to a system?

I recommend checking voltage and connector type before connecting. Never connect a lower-voltage strip to a higher-voltage header. Use fuses or inline resistors if a controller supports them, and always verify pin alignment. If you’re unsure, consult your motherboard manual or the LED manufacturer.

How do hubs and controllers help when my case has mixed lighting devices?

I suggest using a hub or external controller to centralize power and control. Many hubs accept multiple connector types and translate signals, letting older strips and newer addressable devices run together. Choose a hub with sufficient power headroom and the right connectors for your fans and strips.

Are there software limits I should expect with motherboard control suites?

I explain that motherboard utilities like ASUS Aura Sync, MSI Mystic Light, or Gigabyte RGB Fusion can vary in device support and effects. Some apps only handle basic zones, while others manage per-LED patterns. Check compatibility lists before buying gear, and consider third-party controllers if software support is lacking.

What kinds of advanced effects and synchronization are possible with addressable lighting?

I describe effects such as chasing, ripple, and per-LED color transitions. Addressable systems let you sync fans, strips, and GPU headers to create moving gradients and audio-reactive patterns. Achieving smooth synchronization often requires a controller and software that support per-device mapping.

How do I identify the correct connectors and avoid mismatching pins?

I tell you to inspect connectors visually: four-pin blocks are wider and show separate color channels, while three-pin headers include a single data pin. Labeling on cables and motherboard silkscreen will help. When in doubt, consult documentation or use a multimeter to confirm pins before powering on.

Will adding more strips or fans affect color accuracy or brightness?

I note that adding devices increases power draw and can cause voltage drop, dimming distant LEDs or shifting color. Use powered hubs, thicker gauge cables, and feed points spaced along long strips to maintain uniform brightness and true color across the system.

What practical steps do I take when building a lighting ecosystem with mixed-brand components?

I recommend choosing a primary control method—motherboard headers or an external hub—then selecting adapters or controllers that support the brands you own. Prioritize power capacity, compatible connectors, and software that supports multiple vendors. Test each device individually before full integration.
